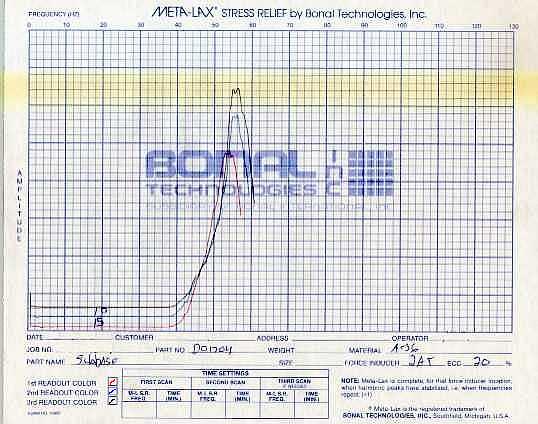

Vibrational Stress Relieving Chart Example

Back - Summary of Research Data (pdf 205KB) - Companies Using & Promoting Meta-Lax

The intial scan(red) identifies the stress present in the piece. The force(vibration) inducer is run
for a prescribed period of time and the second scan(blue) is charted to show the removal of the
stress in part. A third scan(black) is then done to verify the that the stress has been removed.
The peaks on the graph are used to assertain the removal of stress. The 2nd and 3rd peaks
must be within 1% of each other to fully stress relieve the part.
